A 3D profile tube laser cutting machine automatically clamping and processing a long structural steel section.

Tube & Profile Laser Cutting

Notched, profiled and ready to weld

Tube Cut Right the First Time

Cutting tube by hand means marking out, sawing, coping, grinding and test fitting, and every step costs time. Our tube laser does it in one process, cutting lengths, notches, slots and holes in a single pass to match your drawing.

Not every workshop has tube laser capability, and we think it’s one of the best ways to speed up a build. Parts arrive accurate and consistent, so your team spends less time preparing and more time assembling.

Request a Quote
Perfectly coped saddle joint on round steel pipe fitting completely flush against another tube section.

One Machine, Dozens of Cuts

Notches and coping: Clean, accurate tube-to-tube joints that sit tight and are ready to weld.

Slots and tabs: Self-locating features so tube lines up with plate or other tube without measuring again.

Mitres and angled cuts: Precise angles for frames, rails and structures.

Holes and cut-outs: Round, square and custom shapes cut right into the tube, with no drilling or filing afterwards.

Less Time in Your Workshop

Without tube laser With Laser360
Mark out and measureSend us the drawing
Cut to lengthCut to length, in one process
Cope and notch by handNotched and profiled by the machine
Drill holes, grind and fileHoles and slots already cut
Test fit, adjust, repeatParts fit first go

Pair it with our Design & Drafting service and we’ll design the joints to fit together properly from the start.

See Design & Drafting

Sections We Cut

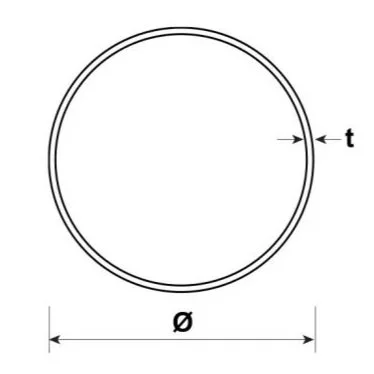

Circular hollow section CHS steel tubes processed cleanly on a 300mm capacity chuck profile laser machine.

Round Tube (CHS)

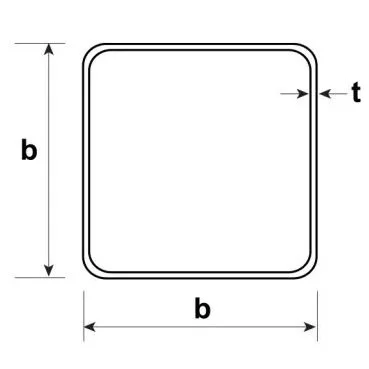

Square hollow section SHS structural steel columns cleanly cut to length with custom-machined side profiles.

Square Tube (SHS)

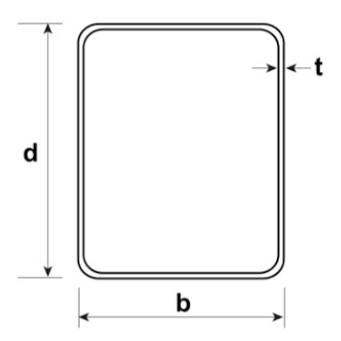

Rectangular hollow section RHS steel profiles notched and slotted for heavy structural industrial frames.

Rectangular Tube (RHS)

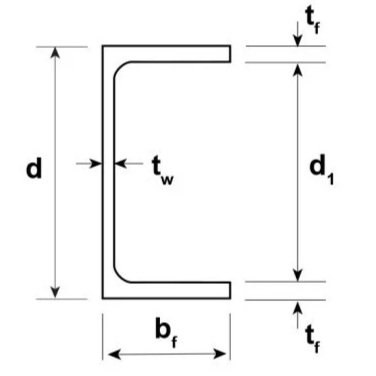

Structural steel parallel flange channels PFC and equal angle iron profiles prepared for mechanical fabrication.

Parallel Flange Channel (PFC)

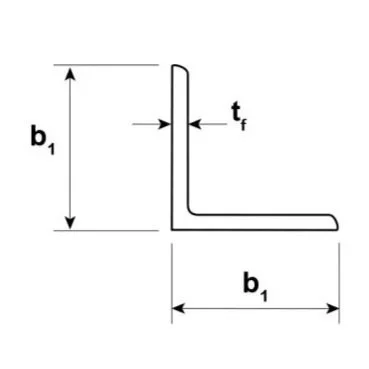

Equal angle and unequal angle steel iron sections notched for building frames.

Equal Angle (EA)

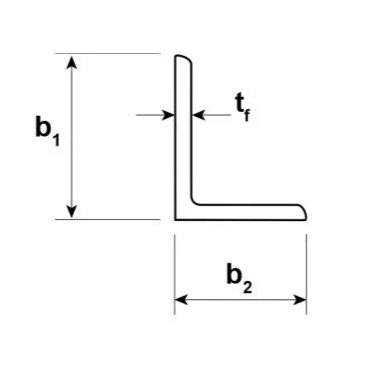

Unequal angle and equal angle steel iron sections notched for building frames.

Unequal Angle (UA)

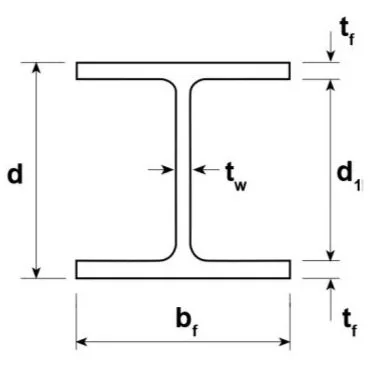

Heavy structural steel universal columns (UC) processed with laser-cut bolt tracks.

Universal Columns (UC)

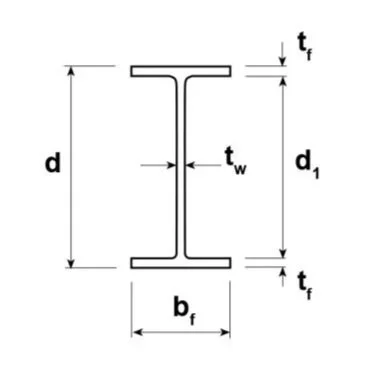

Industrial I-beam universal beams (UB) cleanly profiled for structural commercial framing.

Universal Beams (UB)

Section Chuck Capacity
Round Tube (CHS)Ømax < 300mm
Square Tube (SHS)bmax < 300mm
Parallel Flange Channel (PFC)dmax < 300mm
Rectangular Tube (RHS)dmax < 300mm
Equal Angle (EA)b1max < 300mm
Unequal Angle (UA)b1max < 300mm
Universal Column (UC)dmax < 300mm
Universal Beam (UB)dmax < 300mm
Material tmax (mm)
Mild Steel25
Stainless Steel20
Aluminium12
Brass12
Hardox / Bisalloy20

  • We handle lengths up to 6.5 m. For longer, we’ll work out the best approach with you.

  • We can supply the material or feel free to bring your own

  • No. A clear drawing with dimensions is enough to start, and our drafting service can build the model for you.

  • Yes. We cut both in the same workshop, so a full kit can be made together.

  • Yes. Send in the original or the key dimensions and we’ll draft it to suit.

Need Tube Cut?

Request a quote
